WORKJET & WORKRIB Fast Responce Vessels

Our new range of high performance vessels developed to reach high speed with less cost. POWERBOAT is building various types and size of crafts. Our vessels designed for different type of operations. Our goal is building most efficient vessel for market needs. We are flexible with design and equipment needs..

WORKSAFE 1000








CLICK FOR MORE INFORMATIONRIBS
CLICK FOR MORE INFORMATIONWORKJET
CLICK FOR MORE INFORMATIONWORKSAFE
CLICK FOR MORE INFORMATION
CLICK FOR MORE INFORMATION

CLICK FOR MORE INFORMATION

 CLICK FOR MORE INFORMATION CLICK FOR MORE INFORMATION
WORKRIB

WORKJET
WORKSAFE
WORKPONTOON

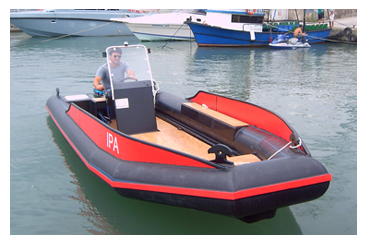

WORKJET 600 - RIGID RIB

RIBS

Click for more information





Characteristics


Hull
:HDPE
Superstructure
: HDPE
Length o.a.
: 6.00 meter
Beam o.a.
: 2.20 m
Weight *single engine
: 800kg
Weight * twin engines : 950kg
Draft Min : 0.70 m * With Waterjet sytem
Draft Max
: 1.15 m * With Shaft drive system
Load capacity
: 600Kg
Power range (total)
: between 9.9hp to 80hp
Speed range
: 20 - 42 knots

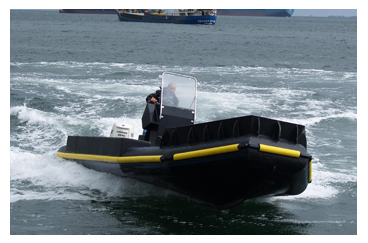

WORKJET 800 - RIGID RIB

RIB

Click for more information





Characteristics


Hull
:HDPE
Superstructure
: HDPE
Length o.a.
: 8.00 meter
Beam o.a.
: 3.00 m
Weight *single engine
: 1100kg
Weight * twin engines : 14000kg
Propulsion :Outboard or Waterjet system
Load capacity
: 1000Kg
Power range (total)
: between 100hp to 400hp
Speed range
: 20 - 42 knots

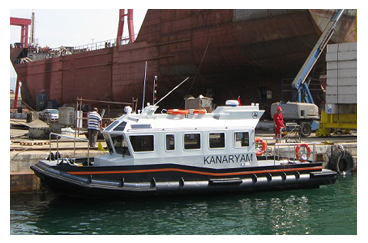

WORKJET 1000 SERIES Workjet1000

Click for more information



Characteristics


Hull
: POLYMER - HDPE
Superstructure
: POLYMER - HDPE
Length o.a.
: 9.90 meter - 32.4 feet
Beam o.a.
: 3.40 m - 11.1 feet
Weight *single engine
: 4550kg
Weight * twin engines : 5100kg
Draft Min : 0.70 m * With Waterjet sytem
Draft Max
: 1.15 m * With Shaft drive system
Total tank capacity
: 3 m³ - 790 gallon
Power range (total)
: between 370hp to 1540 hp
Speed range : 20 - 42 knots

WORKJET 1300 SERIES Workjet 1300

Click for more information



Characteristics


Hull
: POLYMER - HDPE
Superstructure
: POLYMER - HDPE
Length o.a.
: 12.70 meter -41.6 feet
Beam o.a.
: 3.70 m - 12 feet
Weight *single engine
: 8150kg - 17.956 pound
Weight * twin engines : 9150kg - 20.170 pound
Draft Min : 0.70 m * With Waterjet sytem
Draft Max
: 1.15 m * With Shaft drive system
Total tank capacity
: 3 m³ - 790 gallon
Power range (total)
: between 370hp to 1540 hp
Speed range : 20 - 42 knots

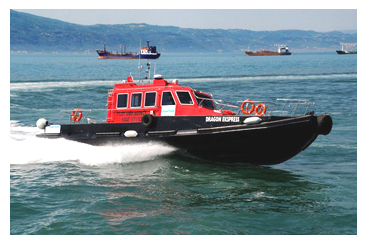

WORKJET 1500 SERIES Workjet 1500

Click for more information



Characteristics


Hull
: POLYMER - HDPE
Superstructure
: POLYMER - HDPE
Length o.a.
: 14.95 meter -49 feet
Beam o.a.
: 4.40 m
Weight * twin engines : 1600kg
Draft Min : 0.70 m * With Waterjet sytem
Draft Max
: 1.20 m * With Shaft drive system
Total tank capacity
: 3 m³ - 790 gallon
Power range (total)
: between 640hp to 1540 hp
Speed range : 20 - 42 knots
WATERJET DRIVE SYSTEM

SHAFT DRIVE SYSTEM

 STERN DRIVE SYSTEM OUTBOARD ENGINE DRIVE SYSTEM


OUR BOATS CAN BE USED FOR DIFFERENT OPERATIONS: PATROL DUTIES, PILOT DUTIES, SERVICE DUTIES, DIVING, CREW ,SUPLY, RESCUE OPERATIONS, FIRE DUTIES, UTILITY WORKS, WORK PONTOONS, RIBS . WE OFFER CUSTOM BUILD BOATS FOR OUR CLIENTS ALSO.
