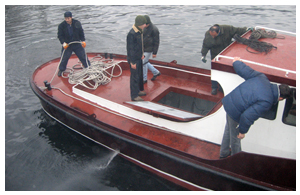

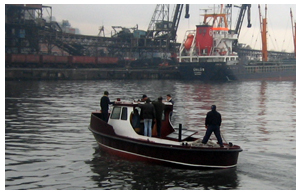

MOORING BOAT 0136
|
|
| Morrong Boat 0132 designed to help ship asist during berthing ships in the harbour. |
| SPECIFICATIONS |
|
| Hull |
: Steel |
| Superstructure |
: Steel |
| Length o.a.
|
: 9.95 m |
| Beam o.a.
|
: 2.10 m |
| Depth at sides
|
: 1.00 m |
| Draft |
: 1.00 m |
| Total tank capacity
|
: 1,6 m³ |
| Power range (total)
|
: 100 - 250hp |
| Speed range
|
: 6 - 8 knots |
| Bollard pull range
|
: 0.7- 1,2 Tbp |
| RECOMENDED EQUIPMENTS |
| ENGINE |
: Cummins 4BTA 150hp@2500rpm |
| Gearbox |
: ZF 260 |
| OTHER PROPULSION AND GENERATOR OPTIONS AVAILABLE |
| Caterpillar, Volvo, Scania, Iveco, Doosan, Hyundai |
|
|

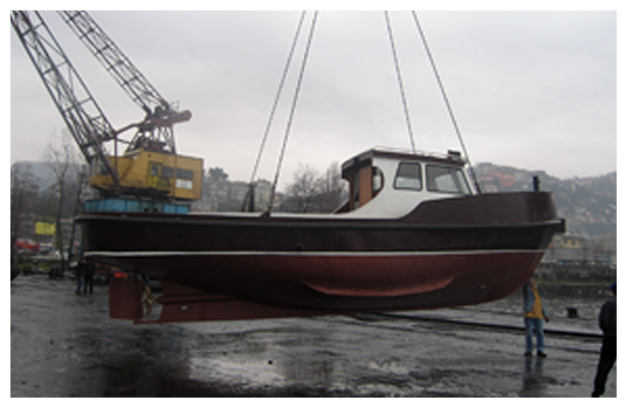

MOORING BOAT 0136
|
|
| Morrong Boat 0136 designed to help ship asist during berthing ships in the harbour. Asist operation with maximum speed of 14 knots and 5 tons hydraulic winch. Vessel is able to anchor handle and lina handle during the ships moving aperations at the harbour. Vessels hull designed to work in heavy seas and ocean coastal. |
| SPECIFICATIONS |
|
| Hull |
: Steel |
| Superstructure |
: Steel |
| Length o.a.
|
: 11.70 m |
| Beam o.a.
|
: 4.20 m |
| Depth at sides
|
: 1.60 m |
| Draft |
: 1.60 m |
| Total tank capacity
|
: 4 m³ |
| Power range (total)
|
: 250 - 450hp |
| Speed range
|
: 10 - 13.5 knots |
| Bollard pull range
|
: 2 - 4 Tbp |
| RECOMENDED EQUIPMENTS |
| ENGINE |
: Cummins 6CTA 450hp@2600rpm |
| Gearbox |
: ZF 280 |
| Genarator Set |
: 11kw 50HZ |
| Bow Thruster |
: Hydraulic 50hp Optional |
| Deck Winch |
: 1 X 5t Hydraulic anchor handling |
|
| OTHER PROPULSION AND GENERATOR OPTIONS AVAILABLE |
| Caterpillar, Volvo, Scania, Iveco, Doosan, Hyundai |
|
|
MOORING BOAT 0136
|
|
| Morrong Boat 0136 designed to help ship asist during berthing ships in the harbour. Asist operation with maximum speed of 14 knots and 5 tons hydraulic winch. Vessel is able to anchor handle and lina handle during the ships moving aperations at the harbour. Vessels hull designed to work in heavy seas and ocean coastal. |
| SPECIFICATIONS |
|
| Hull |
: Steel |
| Superstructure |
: Steel |
| Length o.a.
|
: 11.70 m |
| Beam o.a.
|
: 4.20 m |
| Depth at sides
|
: 1.60 m |
| Draft |
: 1.60 m |
| Total tank capacity
|
: 4 m³ |
| Power range (total)
|
: 250 - 450hp |
| Speed range
|
: 10 - 13.5 knots |
| Bollard pull range
|
: 2 - 4 Tbp |
| RECOMENDED EQUIPMENTS |
| ENGINE |
: Cummins 6CTA 450hp@2600rpm |
| Gearbox |
: ZF 280 |
| Genarator Set |
: 11kw 50HZ |
| Bow Thruster |
: Hydraulic 50hp Optional |
| Deck Winch |
: 1 X 5t Hydraulic anchor handling |
|
| OTHER PROPULSION AND GENERATOR OPTIONS AVAILABLE |
| Caterpillar, Volvo, Scania, Iveco, Doosan, Hyundai |
|
|
|
|
|
|
|
