Pilot boats designed for assisting ships and delivering pilots to incoming vessel to harbors. Vessels designed for high speed and high stability. Performance of the vessel changes between 20 nautical miles to 30 nautical miles. Vessels are available with different drive systems. Arya Shipyard is building Pilot Boats from different combination of materials. Vessels can be build from steel hull and steel wheelhouse as standard version. Also build from Aluminum hull and Aluminum wheelhouse to increase performance by light weight of aluminum. Vessels designed to work in all weather conditions with comfortable wheelhouse and cabin.

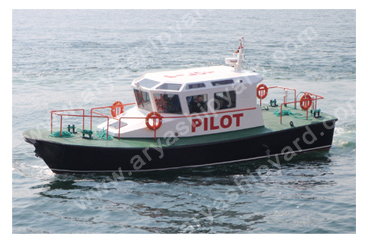

PILOT BOAT 0140
	SPECIFICATIONS   Hull : Steel ( Standard) - ALUMINUM OPT Superstructure : Steel (Standard) - ALUMINUM OPT Length o.a. : 13.95 m Beam o.a. : 4.60 m Depth at sides : 1.80 m Draft : 1.15 m Total tank capacity : 4 m³ Power range (total) : 1350 - 1500 hp Speed range : 20 - 30 knots

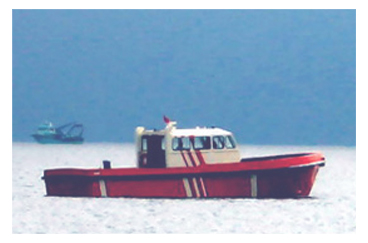

PILOT BOAT 0149	SPECIFICATIONS   Hull Superstructure : Steel (STANDART) - ALUMINUM OPT: Length o.a. : 14.95 m Beam o.a. : 4.40 m Depth at sides : 2.00 m Draft : 1.10 m Total tank capacity : 4 m³ Power range (total) : 1350 - 1500 hp Speed range : 20 - 30 knots

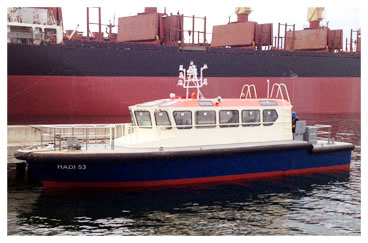

PILOT BOAT 1700	SPECIFICATIONS   Hull : Steel Superstructure : Aluminum Length o.a. : 17.20 m Beam o.a. : 5.20 m Depth at sides : 2.40 m Draft : 1.40 m Total tank capacity : 10 m³ Power range (total) : 1350 - 1800 hp Speed range : 16 - 20 knots

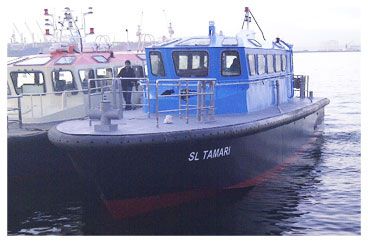

PILOT BOAT 1900	SPECIFICATIONS   Hull : Steel Superstructure : Aluminum Length o.a. : 19.25 m Beam o.a. : 5.40 m Depth at sides : 2.60 m Draft : 1.40 m Total tank capacity : 6 m³ Power range (total) : 1500 - 2000 hp Speed range : 16 - 24 knots

WATERJET DRIVE SYSTEM

SHAFT DRIVE SYSTEM

STERN DRIVE SYSTEM

OUTBOARD ENGINE DRIVE SYSTEM
