Navigation Lights
Remote Control Projector
Aluminium Engine Hatch
Aluminium Doors
Aluminium Framed Windows
Tempered Glasses With
Cabin Lights
Electrical Wiring
Control Console
Bilge Pumps
Cabin Lights
Deck Projector
Fire Extinguisher
Life Jackets 8+1 pieces
Life Buoys 4 pieces
Medical Kit
Tempered Glasses With
Cabin Lights
Electrical Wiring
Control Console
Bilge Pumps
Cabin Lights
Deck Projector
Optional Equipments
A) HEATING PACKAGE
- Vebasto
- Engine Powered Heating System
B) AIR CONDITION SYSTEM
- Engine Powered Air Condition
- Generator Powered 220v Air Condition
C) TOILET & BATHROOM
- Toilet, Gret Water, Fresh Water Tank
- Bathroom
D) FLOOR PACKAGES
- Aluminum Plate Floor
- Plywood Floor
E) ELECTRONICS PACKACES
- RADAR
- GPS/CHARTPLOTTER
- VHF
- Autopilot
- Echo Sounder
F) SEATING PACKAGES
- Bench style seating 12 person
- Plastic style seating 8 person
- Pilot style seating 8 person
- Suspansioned Pilot style seating 8 person

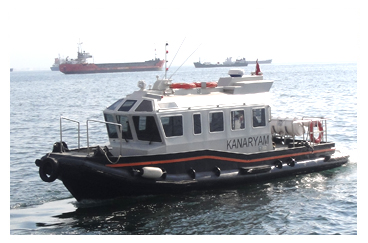

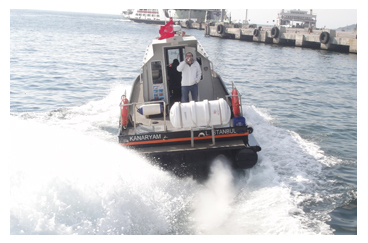

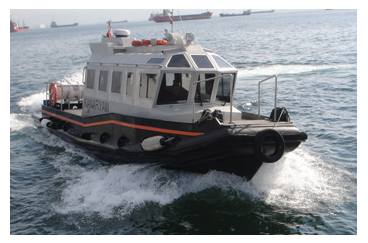

WORKJET 1000 designed for high speed and high stability. Performance of the vessel changes between 20 knots/hr to 42 knots/hr nautical miles. Vessels are available with two different drive systems. (STERN DRIVE, SHAFT DRIVE AND WATERJET DRIVE) Arya Shipyard is building WORKJET1000 from different combination of materials. Vessel can be build from Aluminum Hull and Aluminum Wheelhouses standard version. Also build from HDPE hull and HDPE wheelhouse to increase performance and durability by light weight of HDPE. Vessel can work in all weather conditions with comfortable wheelhouse and cabin. 360 degree view at crew cabin helps operator to operate safely. Standard Vessels are designed without cabin, toilet or galley. We are offering these facilities as an option. Vessels can be designed with small cabin to rest in long work hours and operations. Arya Shipyard offers different combination and customization options with WORKJET 1000.
Characteristics
Hull
: ALUMINUM OR HDPE
Superstructure
: ALUMINUM OR HDPE
Length o.a.
: 9.90 meter - 32.4 feet
Beam o.a.
: 3.40 m - 11.1 feet
Weight
*single engine
: 4550kg
Weight *
twin engines
: 5100kg
Draft Min
: 0.70 m * With Waterjet sytem
Draft Max
: 1.15 m * With Shaft drive system
Total tank capacity
: 3 m³ - 790 gallon
Power range (total)
: between 450hp to 1540 hp
Speed range
: 20 - 42 knots
RECOMENDED CONFIGURATIONS FOR SHAFT DRIVE BOATS
CONFIGURATION : 1S6CTA4501000
SINGLE ENGINE INSTALATION
ENGINE
: SINLGE CUMMINS 6CTA
POWER
: 450hp@2600rpm
Gearbox
: ZF 3251A
Genarator Set
: Cummins Onan 10Kw 50hz
SPEED
: 32 knots
Caterpillar, Volvo, Scania, Iveco, Man, Hyundai also available.
RECOMENDED CONFIGURATIONS FOR WATERJET BOATS
CONFIGURATION : 2S6BTA3701000W
TWIN ENGINE INSTALATION
ENGINE
: 2 X CUMMINS 6BTA
POWER
: 2 X 370hp@3000rpm
Waterjet system
: Hamilton Jet or Ultra Jet
SPEED
: 42 knots
For more detailed information about the water jet mode of operation please visit the Hamilton Jet web site www.hamiltonjet.co.nz/
