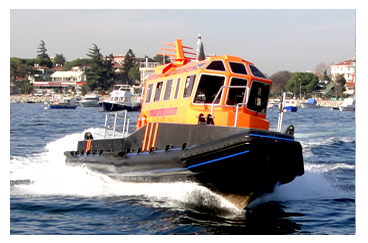

WORKJET 1300 SERIES



WORKJET 1300 designed for assisting ships and delivering pilots to incoming vessel to harbors. Vessels designed for high speed and high stability. Performance of the vessel changes between 20 nautical miles to 42 nautical miles. Vessels are available with different drive systems. (STERN DRIVE, SHAFT DRIVE AND WATERJET DRIVE) Aryan Boat is building Pilot Boat 1300W from different combination of materials. Vessel can be build from Aluminum Hull and Aluminum Wheelhouses standard version. Also build from HDPE hull and HDPE wheelhouse to increase performance and durability by light weight of HDPE. Vessel designed to work in all weather conditions with comfortable wheelhouse and cabin. 360 degree view at crew cabin helps operator for safely. Standard Vessels are designed without cabin, toilet or galley. We are offering these facilities as an option. Vessels can be designed with small cabin to rest in long work hours and operations. Aryan Shipyard offers different combination and customization options with Pilot Boat 1300.



Characteristics


Hull
: POLYMER HDPE
Superstructure
: POLYMER HDPE
Length o.a.
: 12.70 meter -41.6 feet
Beam o.a.
: 3.70 m - 12 feet
Weight *single engine
: 8150kg - 17.956 pound
Weight * twin engines : 9150kg - 20.170 pound
Draft Min : 0.70 m * With Waterjet sytem
Draft Max
: 1.15 m * With Shaft drive system
Total tank capacity
: 3 m³ - 790 gallon
Power range (total)
: between 450hp to 1540 hp
Speed range
: 20 - 42 knots
CONFIGURATION : 1SQSM1300W
SINGLE ENGINE INSTALATION

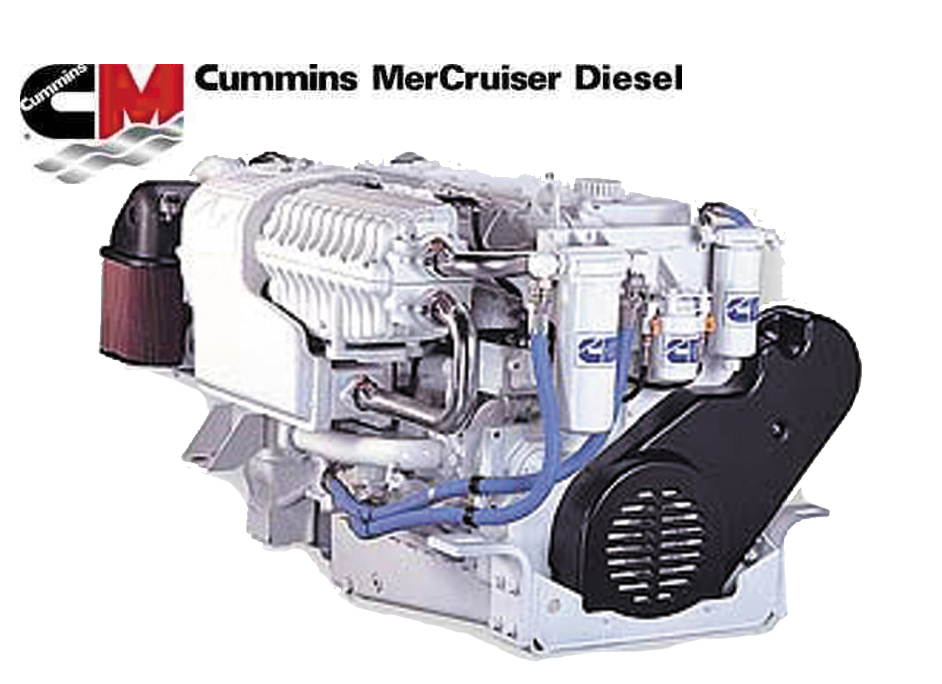

ENGINE : SINGLE CUMMINS QSM11
POWER

: 660hp@2300rpm

Gearbox : ZF 3251A
Genarator Set : Cummins Onan 11Kw 50hz
SPEED : 32 knots





Caterpillar, Volvo, Scania, Iveco, Hyundai also available.
RECOMENDED CONFIGURATIONS FOR WATERJET BOATS
CONFIGURATION : 2T6CTA1300W
TWIN ENGINE INSTALATION
ENGINE : 2 X CUMMINS 6CTA
POWER

: 2 X 450hp@2600rpm

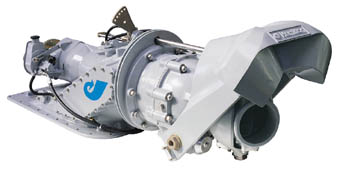

Waterjet system : Hamilton Jet or Ultra Jet
Genarator Set : Cummins Onan 11Kw 50hz
SPEED : 36 - 42knots






For more detailed information about the water jet mode of operation please visit the Hamilton Jet web site www.hamiltonjet.co.nz/





We also use Ulra Jet, Castoldi Jet, Kamewa.



Standard Equipments

Navigation Lights
Remote Control Projector
Aluminium Engine Hatch
Aluminium Doors
Aluminium Framed Windows
Tempered Glasses With
Cabin Lights
Electrical Wiring
Control Console
Bilge Pumps
Cabin Lights
Deck Projector
Fire Extinguisher
Life Jackets 8+1 pieces
Life Buoys 4 pieces
Medical Kit
Tempered Glasses With
Cabin Lights
Electrical Wiring
Control Console
Bilge Pumps
Cabin Lights
Deck Projector

Optional Equipments

A) HEATING PACKAGE
- Vebasto
- Engine Powered Heating System
B) AIR CONDITION SYSTEM
- Engine Powered Air Condition
- Generator Powered 220v Air Condition
C) TOILET & BATHROOM
- Toilet, Gret Water, Fresh Water Tank
- Bathroom
D) FLOOR PACKAGES
- Aluminum Plate Floor
- Plywood Floor
E) ELECTRONICS PACKACES
- RADAR
- GPS/CHARTPLOTTER
- VHF
- Autopilot
- Echo Sounder
F) SEATING PACKAGES
- Bench style seating 12 person
- Plastic style seating 8 person
- Pilot style seating 8 person
- Suspansioned Pilot style seating 8 person

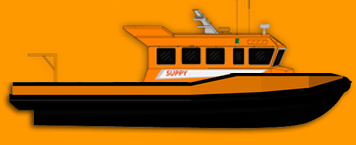

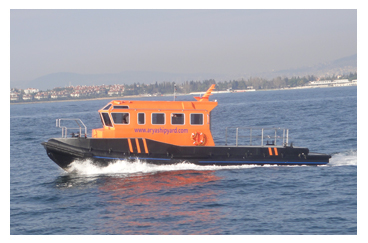

WORKJET 1300 FRONT CABIN

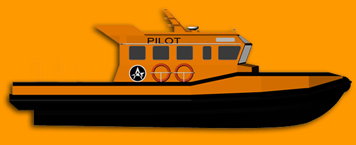

WORKJET 1300 CENTER CABIN
