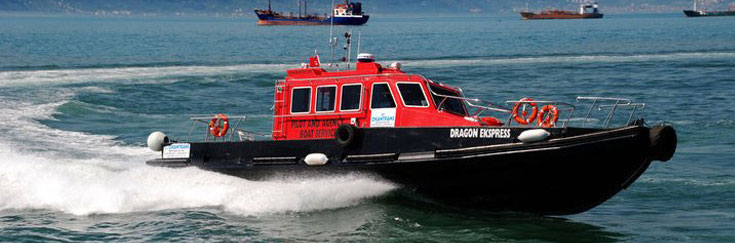

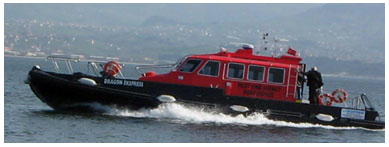

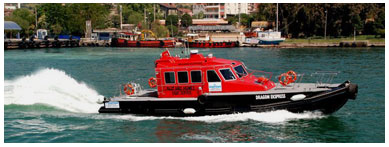

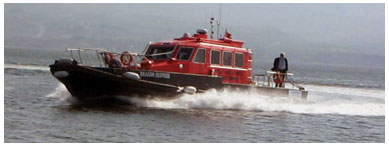

WORKJET 1500 SERIES



WORKJET 1500 designed for assisting ships and delivering pilots to incoming vessel to harbors. Vessels designed for high speed and high stability. Performance of the vessel changes between 20 nautical miles to 36 nautical miles. Vessels are available with different drive systems. (STERN DRIVE, SHAFT DRIVE AND WATERJET DRIVE) Aryan Boat is building Pilot Boat 1500 from different combination of materials. Vessels are built from HDPE hull and HDPE wheelhouse to increase performance and durability by light weight of HDPE. Vessel designed to work in all weather conditions with comfortable wheelhouse and cabin. 360 degree view at crew cabin helps operator for safely. Standard Vessels are designed without cabin, toilet or galley. We are offering these facilities as an option. Vessels can be designed with small cabin to rest in long work hours and operations. Aryan Shipyard offers different combination and customization options with Workjet 1500.

Characteristics


Hull
: POLYMER HDPE
Superstructure
: POLYMER HDPE
Length o.a.
: 14.95 meter -49 feet
Beam o.a.
: 4.40 m
Weight * twin engines : 16.000Kg
Draft Min : 0.70 m * With Waterjet sytem
Draft Max
: 1.00 m * With Shaft drive system
Total tank capacity
: 2 m³
Power range (total)
: between 450hp to 1540 hp
Speed range
: 20 - 38 knots
CONFIGURATION : 2SQSM1500
TWIN ENGINE INSTALATION
ENGINE : TWIN CUMMINS QSM11
POWER

: 660hp@2300rpm
Gearbox : ZF 3251A
Genarator Set : Cummins Onan 11Kw 50hz
SPEED : 38 knots
Caterpillar, Volvo, Scania, Iveco, Hyundai also available.
RECOMENDED CONFIGURATIONS FOR WATERJET BOATS
CONFIGURATION : 2T6CTA1500
TWIN ENGINE INSTALATION
ENGINE : 2 X CUMMINS 6CTA
POWER

: 2 X 450hp@2600rpm
Waterjet system : Hamilton Jet or Ultra Jet
Genarator Set : Cummins Onan 11Kw 50hz
SPEED : 36 - 42knots
Caterpillar, Volvo, Scania, Iveco, Hyundai also available.



Standard Equipments

Navigation Lights
Remote Control Projector
Aluminium Engine Hatch
Aluminium Doors
Aluminium Framed Windows
Tempered Glasses With
Cabin Lights
Electrical Wiring
Control Console
Bilge Pumps
Cabin Lights
Deck Projector
Fire Extinguisher
Life Jackets 8+1 pieces
Life Buoys 4 pieces
Medical Kit
Tempered Glasses With
Cabin Lights
Electrical Wiring
Control Console
Bilge Pumps
Cabin Lights
Deck Projector

Optional Equipments

A) HEATING PACKAGE
- Vebasto
- Engine Powered Heating System
B) AIR CONDITION SYSTEM
- Engine Powered Air Condition
- Generator Powered 220v Air Condition
C) TOILET & BATHROOM
- Toilet, Gret Water, Fresh Water Tank
- Bathroom
D) FLOOR PACKAGES
- Aluminum Plate Floor
- Plywood Floor
E) ELECTRONICS PACKACES
- RADAR
- GPS/CHARTPLOTTER
- VHF
- Autopilot
- Echo Sounder
F) SEATING PACKAGES
- Bench style seating 12 person
- Plastic style seating 8 person
- Pilot style seating 8 person
- Suspansioned Pilot style seating 8 person
